Dendrokronologisk Laboratorium

NNU rapport 49, 1999
AD 979-1137
DENMARK Svendborg 4m000001 5,30
East Denmark 9m230001 3,29
Jutland 9m456781 4,56
GERMANY Schleswig-Holstein dm100003 5,41
Lübeck dm100008 2,59
Weserbergland dm200003 3,65
Lower Saxony dm200005 5,20
Lüneburger dm200006 5,86
West Germany dm300001 3,16
South Germany dm700001 3,36
Germany chro0001 6,24
POLAND Gdask Pomerania pm000004 4,75
Elblag pm000007 4,64
Poland chro0003 6,47
Art historical chro0004 5,30
Szczecin/Stettin p727001m 3,33
Bydgoszcz p743003s 5,38
SWEDEN Mid Sweden sm600001 4,77
Kamien Pomorski, Polen. Skema over synkroniseringsværdierne mellem trækurven 0093M001 og diverse grundkurver for egetræ fra Nord Europa.

Planke 6BB 6R
148 år, kun kerneved.
982-1129 e.Kr., efter ca. 1145
stammer sandsynligvis fra samme træ som 0093002A, 0093003A, 0093008A og 00930099

Planke 5BB 6R
126 år, kun kerneved.
980-1105 e.Kr., efter ca. 1145
stammer sandsynligvis fra samme træ som 0093001A, 0093003A, 0093008A og 00930099

Planke 5BB 4R
103 år, kun kerneved.
979-1081 e.Kr., efter ca. 1045
stammer sandsynligvis fra samme træ som 0093001A, 0093002A, 0093008A og 00930099

Planke 4BB 5R
122 år, kun kerneved.
997-1118 e.Kr., efter ca. 1134

Planke 3BB 6R
140 år, heraf 10 år i splintved.
998-1137 e.Kr., ca. 1142 e.Kr.

Planke 2BB 5R
135 år, kun kerneved.
1000-1134 e.Kr., efter ca. 1150

Planke 1BB 6R
117 år, kun kerneved.
1007-1123 e.Kr., efter ca. 1139

Planke 1SB 5R
105 år, kun kerneved.
995-1099 e.Kr., efter ca. 1145
stammer sandsynligvis fra samme træ som 0093001A, 0093002A, 0093003A og 00930099

Planke 2SB 5R
104 år, kun kerneved.
982-1085 e.Kr., efter ca. 1145
stammer sandsynligvis fra samme træ som 0093001A, 0093002A, 0093003A og 0093008A

Kamien Pomorski
107 år, kun kerneved.
1026-1132 e.Kr., efter ca. 1150

Kamien Pomorski
63 år, kun kerneved.
998-1060 e.Kr., efter ca. 1076

Tilbage til rapportsiden

NNU report 49, 1999

The Centre for Maritime Archaeology at the National Museum of Denmark.
Submitted by George Indruszewski.
Examined by Niels Bonde, Aoife Daly, Orla Hylleberg Eriksen and Tomasz Wazny.
NNU A8084

The wreck was excavated in 1984. It was found near the town of Kamien Pomorski, in a wetland area adjacent to the shore of Carpinska cove. It is today housed in the National Museum in Szczecin/Stettin.

11 samples of Quercus sp., oak were examined. One of the samples had sapwood preserved. All the samples are dated.

The report describes nine samples from this analysis (samples whose numbers begin with 0093) and two which were analysed some time ago (Filipowiak 1996) (numbers beginning with 06943).

The analysis shows that five samples (0093001A, 0093002A, 0093003A, 0093008A and 00930099, see table 1) probably come from the same tree and the curves are averaged to one (00931019) which represents the tree.

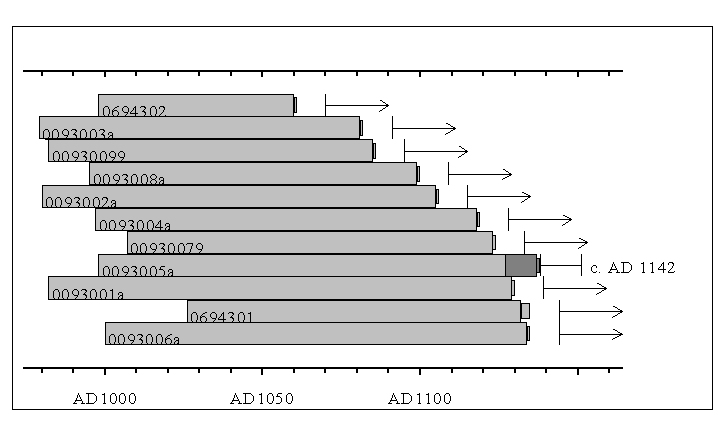

The curves from all 11 samples which represents seven trees, are averaged to form the mean curve 0093M001 of 159 years, which covers the period AD 979-1137. Allowing for missing sapwood, in that the normal sapwood width for Polish trees is circa 15 years, the felling date for the trees from which the samples come, is estimated at circa AD 1142. This date can be taken as the date for the building of the ship.

Dendroprovenance ?
In dating the mean curve 0093M001, master chronologies for oak from around the Baltic sea are used (see table 2). The mean curve cross-dates with curves from Poland and Germany. The t-values do not indicate the provenance of the trees from which the samples come.

Sapwood statistic Wazny 1990; 15 years+9/-6
